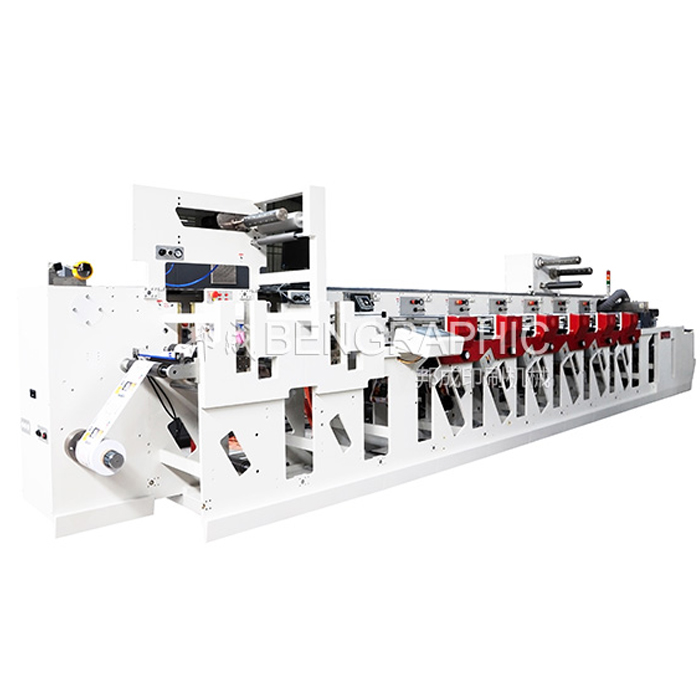

Flexo printing press

f5

f5 flexo printing press

SPECIFITATIONS

Speed 150m/min
Web width 330/430mm
Repeat length 229mm-502 mm
Max.Unwind diameter 760 and/or 1000 mm
rewind diameter 760 and/or 1000 mm
Max.Units 12
UV curing power  400 w/inch





Product No: BG-F5

Product Name: F5-FLEXO PRESS

Specifications: 330/430mm 13/17Inch

Product notes:

Product Class: FLEXO PRESS

Features introduction:

1. Servo drive

Built-in dual servo driven system offers more capabilities, including an automatic alignment, automatic registration and secondary registration, makes the operation much easier, stable and eliminates bar marking effectively.

2. Short web path design

Short web path design for only 1.3 meter within a printing station can reduce material waste during start up and printing job change. Paper path reduced to 15 meters because flexo printing press equipped with eight colors printing plus two die stations.

3. Lock ink cassette by air cylinder

Lock ink cassette by air cylinder, Which makes operation easier and more quickly change. Separated Anilox with in pan, as well as avoids the removal of the anilox roll when changing the ink.

4. Pre-registration and auto-registration

F5 flexo printing press includes Pre-registration and auto-registration which improves both efficiency and cost savings.

5. Nip device on waste rewind

Nip device on waste rewind to guarantee waste matrix to be unbreakable during high speed production which increases effectiveness and yield of production since we can push matrix width to the minimum required by the cutting edge of knife.

6. Movable rail

Movable rail makes the flexo press earier extend more options, including a delam/relam device, UV rotary screen, turn bar, die cut, screen print, laminating and cold foil.

7. Advanced tension control device

With an advanced tension control device, the lables on 12 micron film, sticker and paper board can all be printed using the F5 flexo printing press. Change of operating speed will not affect registration. There is no waste during jogging and all the way up to production speed.

8. Drying

Drying options include hot air and UV drying (or LED UV). UV drying equipment is from Europe, and self-designed hot air drying enables solid printing to be dried at 40 at 150 m/min

9. The control system can record and recall process parameters of different materials.

10. The water cooled UV curing system, ensures materials maintain a suitable temperature when UV drying, and is suitable for the processing of thermal deformation materials.

11. It is equipped with an internet access function so that all devices can be remotely maintained and upgraded.
